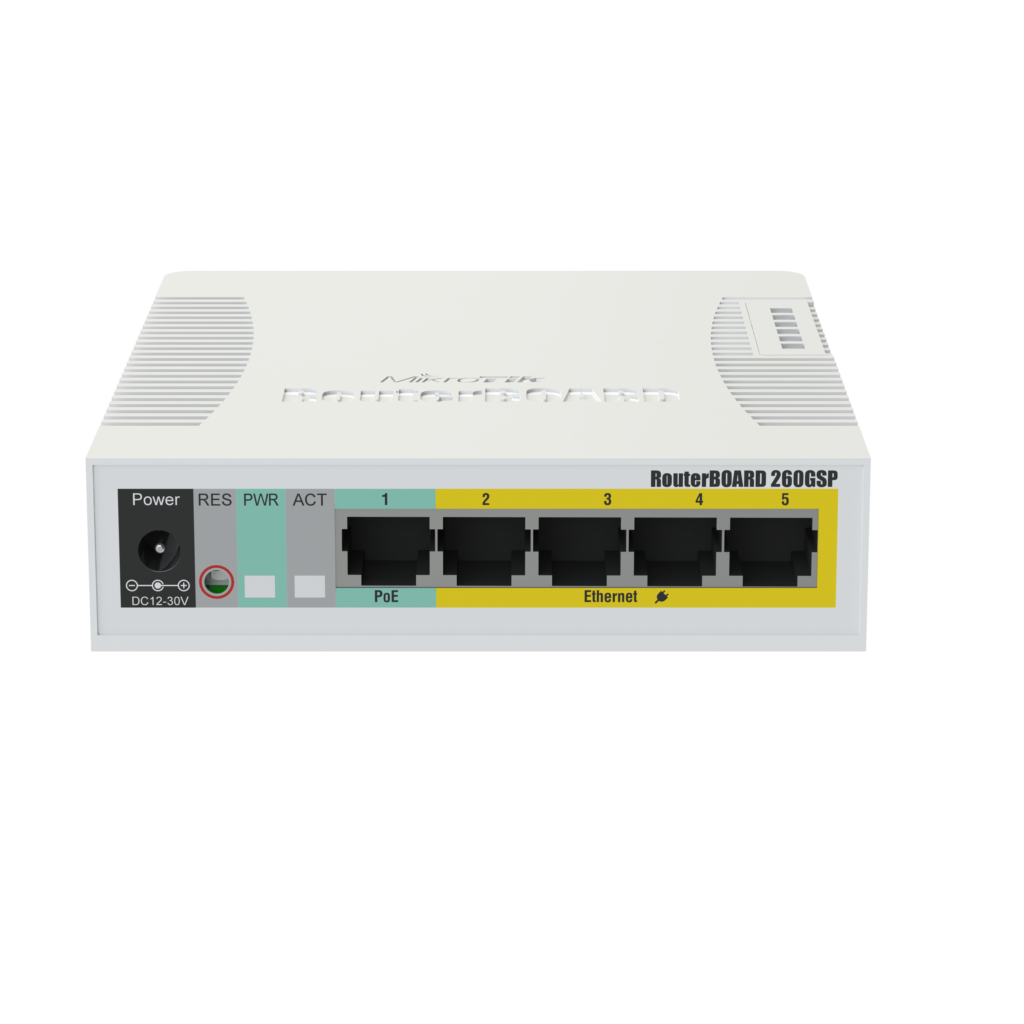

RB260GSP
A tiny SOHO switch called the RB260GSP has Ethernet ports with power output. With the same voltage that is delivered to the unit, ports 2 through 5 can power additional PoE-capable devices (passive PoE over datalines only). Five Gigabit Ethernet ports and one SFP cage are available on the RB260GSP, while an Atheros Switch Chip handles switching. The machine is running SwOS, a customized operating system for MikroTik Switch devices.
Specification of Mikrotik Product RB260GSP
| Details | |
|---|---|
| Product code | CSS106-1G-4P-1S |
| Switch chip model | QCA8337 |
| Dimensions | 113x139x28mm |
| Operating System | MikroTik SwOS |
| Storage size | 128 KB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $55.95 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 53 W |
| Max power consumption without attachments | 5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 1 A |
| Max total out (A) | 2 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
